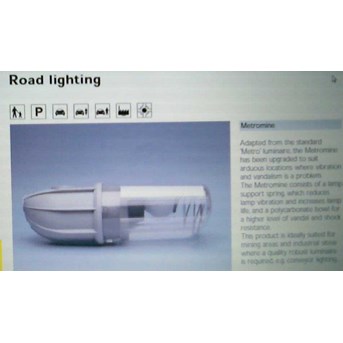

Detail METROMINE
Adapted from the standard
‘Metro’ luminaire, the Metromine
has been upgraded to suit
arduous locations where vibration
and vandalism is a problem.
The Metromine consists of a lamp
support spring, which reduces
lamp vibration and increases lamp
life, and a polycarbonate bowl for
a higher level of vandal and shock
resistance.
This product is ideally suited for
mining areas and industrial sitew
where a quality robust luminaire
is required, e.g. conveyor lighting.
Main applications
- General mine lighting
- Conveylor lighting
- Home yard lighting
- Industry
Features
- Lamp support spring to reduce
lamp vibration
- Polycarbonate bowl to reduce
vandalism and shock
- Choice of HPLN 80W or SON
70W lamp and gear
Materials and finish
- Glass filled nylon body
- Glass filled polyester lampholder
cover
- Stainless steel external spigot
screws
- Stainless steel bowl locking clip
- Provision for D2 base and
photocell
- Injection moulded acrylic bowl
- Twist lock bowl attachment and
removal
- Nitrile ‘o’ ring bowl seal
- Slide-in Galvabond
gear/lampholder assembly
- Stainless steel spigot clamping
plate
- Ceramic lampholder
- Reflector finish silicone modified
polyester paint
- 34mm outside diameter pipe
slip entry
- Weight 3.5kg
Installation and mounting
Wire the pipe entry bracket
leaving 200mm free cable length.
Unlatch and twist off bowl from
body and snap off lampholder
cover with flat bladed screwdriver.
Install body onto pipe bracket
and connect cables into terminal
block. Snap on lampholder cover,
install lamp and replace bowl.
